Vertical compact brushless motor scenic area Tripod turnstile
CXT-SW123A
Tripod turnstile CXT-SW123A
| Model | CXT-SW123A |

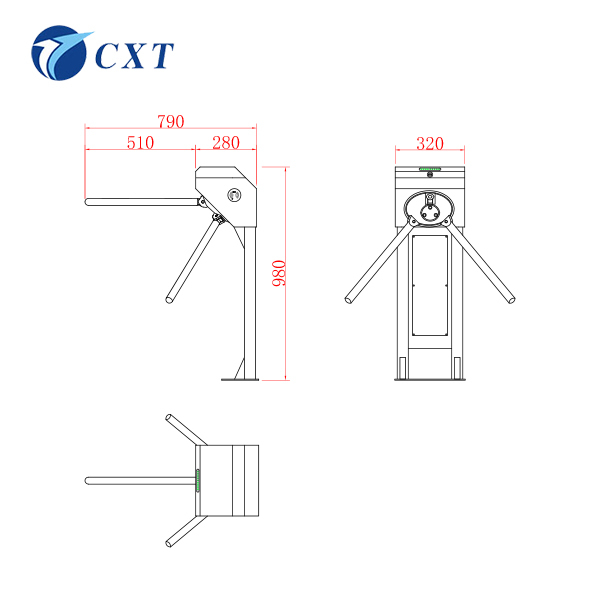

| Specifications | 320*280*980mm |
| Pole length | 510mm |
| Process | Produced by bending, cutting, welding, polishing, grinding and
other processes |
| Material | National standard 304 stainless steel (201 stainless steel, iron
paint can be customized) |
CXT-SW123A Tripod turnstile product introduction
◇ Structure: The entire product appearance is stamped with
stainless steel plate, which is rust-proof, durable, and easy to
use and maintenance-free.
◇ Dimensions: Length 320×Width 280×Height 990 (mm)
◇ Weight: 28KG
◇ Gate rod length: 510 (mm)
◇ Gate rod steering: one-way
◇ Working environment: indoors and outdoors (preferably with a
canopy)
Functional features of CXT-SW123A three-roller turnstile
Push the gate rod to pass, and reset automatically.
Scope of application of the Tripod turnstile:
Applicable to the import and export channels for one-way control of
the flow of people.
◇Import and export channels of stations, docks, and tourist
attractions
◇Ticket inspection channels such as exhibitions and swimming pools
◇Enterprise attendance, access control, and consumption management
for import and export of communities, factories, enterprises and
institutions
◇Special channel control
Stamped with stainless steel plate, rust-proof, durable, and easy
to use and maintenance-free.
Chuangxintong adheres to the business philosophy of "integrity,
innovation, and brand", relying on more than ten years of
exploration and accumulation of intelligent access gate systems,
breaking the traditional pattern with new design concepts, and
successively launching new high-tech access products such as the
channel boutique Pentium series (brushless swing gate, brushless
three-roller gate, brushless wing gate, and high-end sliding gate).
Chuangxintong cases are all over the country: banks, foreign
companies, large state-owned enterprises, administrative units,
petrochemical oil fields, passenger stations, mobile
communications, prisons, smart communities, shopping malls and
supermarkets, buildings/office buildings,
leisure/sports/recuperation/tourist attractions.
Vertical compact brushless motor scenic area Tripod turnstile
CXT-SW123A
Tripod turnstile is a form of gate which allows one person to pass
at a time. It can also be made so as to enforce one-way traffic of
people, bisides of this, it can restrict passage only to people who
insert a coin, a ticket, a pass, a finger, face or similar. Thus
tripod turnstile can be used in the case of paid access (sometimes
called a faregate or ticket barrier when used for this purpose),
for example to access public transport, a pay toilet, or to
restrict access to authorized people, for example in the lobby of
an office building.
