Bridge type brushless motor pass ticketing airport customs Tripod turnstile CXT-SW160

Tripod turnstile CXT-SW160

Model: Three-roller turnstile CXT-SW160

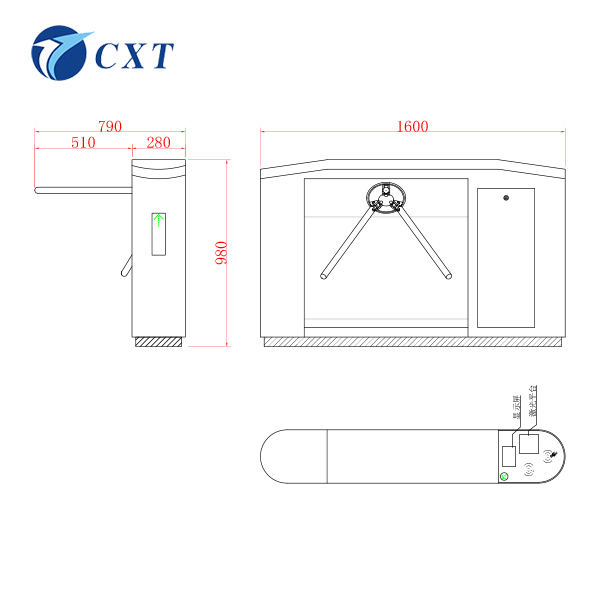

Specifications: 1600mm*280mm*980mm
Pole length: 510mm
Process: Produced by bending, cutting, welding, polishing, grinding and other processes
Material: National standard 304 stainless steel (201 stainless steel, iron paint can be customized)

1) The arc Tripod turnstile has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use;
2) It is equipped with a standard card reader window, which can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;
3) The arc Tripod turnstile has an automatic reset function. When the gate bar is unlocked, it rotates 120 degrees and automatically resets (locks). Or if the user does not pass within the specified time, the system will automatically cancel the user's right to pass and automatically close (lock), and the delay is adjustable to 3S, 5S, 10S, and 60S.
4) Anti-collision function, the gate bar will automatically lock when no gate opening signal is received;
5) Anti-tailgating function, it will turn 120 degrees after one person passes by and automatically lock to avoid tailgating;
6) Automatic gate drop function when power is off to meet the requirements of fire management;
7) It can be connected with a variety of card reading devices and receive relay switch signals to work;
8) It adopts the optical working principle and has no delay requirements for the input control signal, which absolutely avoids the phenomenon of swiping a card to pass several people;
9) The external button can realize the left and right normally open function;
10) The external button can realize the gate drop function without power failure;
11) Remote control and management can be realized directly through the management computer (customization is required);
12) The control panel can be connected to the counting function to record the number of people present and realize the

superposition or forward addition and reverse subtraction functions (customization is required).

Imported Tripod turnstile Exported Tripod turnstile Top ten brands of Tripod turnstile Face recognition Tripod turnstile Card swipe Tripod turnstile QR code Tripod turnstile Application of Tripod turnstile Tripod turnstile manufacturer Tripod turnstile system solution Repair of Tripod turnstile Maintenance of Tripod turnstile Installation of Tripod turnstile Tripod turnstile case

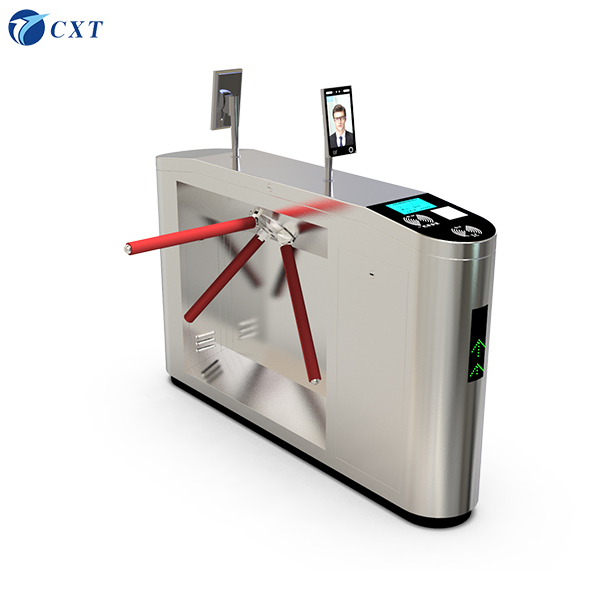

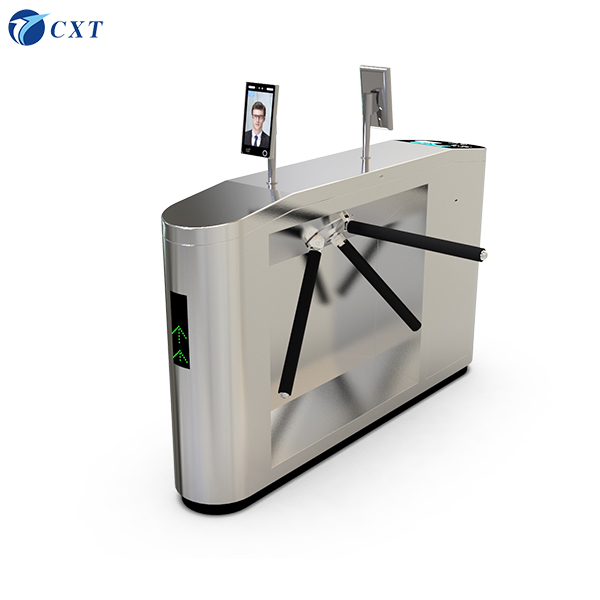

Tripod turnstile picture

1) Arc Tripod turnstile shell material: National standard 304 stainless steel frame structure (customizable 201 stainless steel or iron paint)

2) Processing technology: Produced by bending, cutting, welding, polishing, grinding and other processes

3) Standard dimensions: width 280×length 1200×height 980 (mm)

4) Weight: about 70Kg

5) Gate rod length: 510 (mm)

6) Maximum bearing capacity of the gate rod: 80Kg

7) Gate rod working driving force: 3Kg

8) Gate rod steering: one-way, two-way

9) Light prompt: high-brightness traffic status indication (normally not lit, arrow flashes when passing)

10) Working movement: 12V /20W solenoid valve

11) Working environment: indoor, outdoor (canopy recommended)

12) Adaptable temperature: -40℃ ~ 80℃
13) Emergency measures: Automatically drop the pole when power is off
14) Gate opening time: 0.2 seconds
15) Passing speed: about 30 people/minute
16) Standard input interface: relay switch signal
