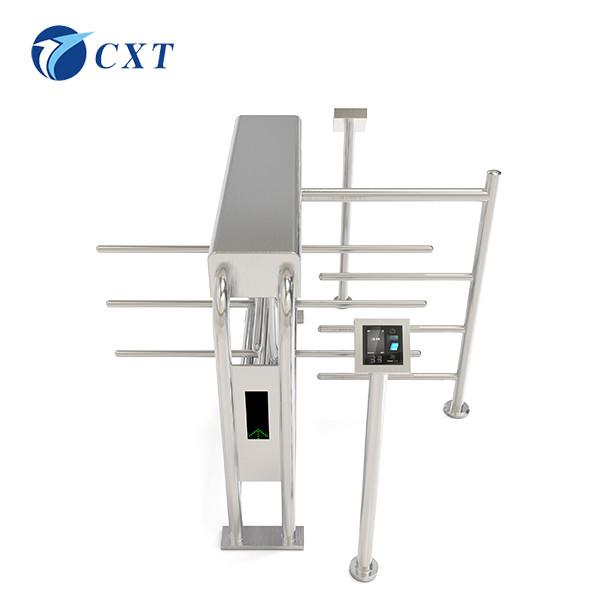

Brushless motor waist high supermarket Full Height Turnstile
CXT-ZT85-A

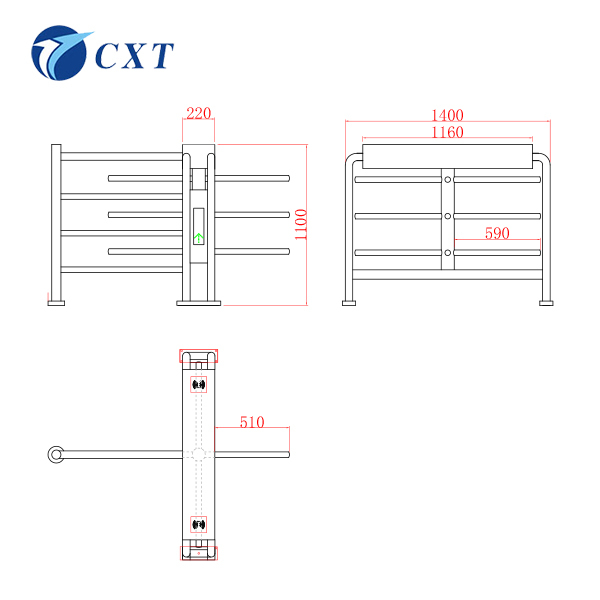

| Model | CXT-ZT85-A |
| Specifications | 1480*280*1100mm |
| Pole length | 570mm |
| Process | Produced by bending, cutting, welding, polishing, grinding and
other processes |
| Material | National standard 304 stainless steel (201 stainless steel, iron
paint can be customized) |
Half-height turnstile-half-height guardrail turnstile
Functional features of half-height turnstile:
1) It has fault self-checking and alarm prompting functions, which
is convenient for users to maintain and use;
2) It has the function of automatic opening when power is off,
self-checking when incoming calls and automatically restoring to
the locked state
3) There are multiple working modes to choose from, that is,
two-way card reading, card reading on one side and prohibition of
the other direction, card reading on one side and free passage in
the other direction, and the gate machine working mode can be set
through the main board menu.
4) When the pedestrian reads the valid card to pass, the infrared
detects that the pedestrian has passed and the gate is
automatically closed or the gate is delayed after the pedestrian
passes. The delay of 1-60 seconds can be set by the main board
menu.
5) It has an automatic reset function. When the valid card is read,
if the passerby does not pass within the specified time, the system
will automatically cancel the passerby's access privileges, and the
restricted access time can be set by the management personnel.
6) It has 485 remote control of gate opening and closing functions
to meet the special needs of users and fire safety requirements.
7) Anti-collision function: when no gate opening signal is
received, the swing arm automatically locks;
8) Mechanical anti-pinch function: when encountering resistance
during the swing arm resetting process, it automatically rebounds
or the motor automatically stops working within the specified time,
and the force is very small, and an alarm signal is issued at the
same time;
9) It has a unified and standard external electrical interface,
which can be connected with various reading and writing devices,
which is convenient for system integration, and can be remotely
controlled and managed through the management computer.
10) The number of people passing in the direction of passage can be
automatically counted and presented to the manager in an intuitive
LED (optional) way, so that the manager can know the number of
people passing in a certain direction.
11) It has a clear direction of passage indication function, and
uses intuitive LED passers-by to indicate whether passage is
allowed or prohibited.
12) It has a card reader with memory and without memory function,
and the user can set it through the motherboard keyboard according
to their needs.
13) Through software settings, the total number of people inside
the venue can be limited to meet the special needs of some special
occasions.
14) The whole system runs smoothly and with low noise;
Product Features
Environment: Indoor/Outdoor
Product Level: High/Medium
Back-to-Back Protection: High
Pinch Protection Level: High
Collision Protection: High
Passenger Groups: Pedestrians
| Comparison parameters | innovative turnstile | market turnstile |
| Operation mode | electric | push |
| Positioning principle | 1/500 decoding | optocoupler fixed point |
| Locking mode | clutch device | positioning arm |
| Transmission mode | motor | solenoid valve, (external force push) |
| Reset mode | automatic rotation (finding zero position) | manual (no prompt) |
| Buffering and anti-collision | yes | no |
| Anti-reversal, yes, no | yes | no |
| Operation noise | no | high |
| Mechanical wear, no, high | no | high |
| Illegal alarm | yes | no |
| Service life | 5-10 years | 1-2 years |
| Smoothness | strong | poor |
| Transmission memory | yes | no |
| Passing prompt | yes | no |
| Feedback signal output | yes | no |
