Face recognition app cloud control station airport customs Wing
Gate CXT-YW160A
Wing Gate CXT-YW160A
Model: CXT-YW3160A
Specifications: 1600*300*1000mm Rod length: 260mm (single)
Process: produced by bending, cutting, welding, polishing, grinding
and other processes
Material: National standard 304 stainless steel (can be customized
201 stainless steel, iron paint)
Brand: Chuangxintong
Model: CXT-YW160A
Product Name: Brushless Fast Wing Gate
Specifications: 1600x300x1000mm
Marketing Time: 2019
Applicable Places: Airports, Office Buildings, Stations, Schools,
Scenic Spots, Stadiums, High-end Residential Areas
Material: 304 Stainless Steel
Product Overview
Chuangxintong Brushless Fast Wing Gate is a new high-tech patented
channel product upgraded to address the defects and deficiencies of
the general series of wing gates. The product adopts a new ARM
control system and advanced brushless motor industrial control
circuit and unique DFC technology, plus the unique transmission
technology of brushless motors and accurate limit technology, which
makes the product revolutionary in terms of performance, life,
speed, noise, stability, etc.
Unique advantages of fast wing gate:
Adopting brushless motor technology, longer life;
Adopting ARM control technology and DFC technology, more powerful
functions and better scalability;
Faster speed, the switching speed can reach ≤0.5S;
Lower sound, up to ≤30 decibels;
Smoother operation, no shaking, no trembling, no echo.
Function introduction:
It has fault self-detection and logic judgment functions, which is
convenient for users to maintain and debug functions;
Flexible setting of various performances, up to dozens of types,
and easy to expand;
Triple anti-pinch function (infrared anti-pinch, mechanical
anti-pinch, rebound when encountering obstacles);
Multiple mode alarm functions, including illegal intrusion,
anti-intrusion, tailing, and passage timeout alarms;
Anti-collision function, when no gate opening signal is received,
the barrier arm is automatically locked;
Reverse intrusion closing alarm function, when someone breaks in
from the reverse direction after swiping the card forward, the
barrier wing closes quickly and an alarm is issued;
Flexible passage indication function, high-brightness indicator
light plus its humanized prompt function, make the channel more
distinctive ;
Normally open and normally closed modes are adjustable, and can be
easily controlled by settings or external manual buttons;
Automatic detection and reset function. After the gate is opened,
if no object is detected within the specified time (adjustable),
the system will automatically cancel the access permission;
Automatically open when power is off to meet fire protection
requirements;
Can be connected to a variety of control devices and receive relay
switch signals to work;
Various access modes, can control personnel entry and exit in one
direction or two directions, or be controlled in one direction and
free to pass in the opposite direction;
Strong ability to adapt to the environment, can work normally in
various harsh environments, super strong self-protection ability,
can adapt to weak current short circuit, strong light exposure,
fog, rain, snow, typhoon weather and environmental changes.
Technical parameters:

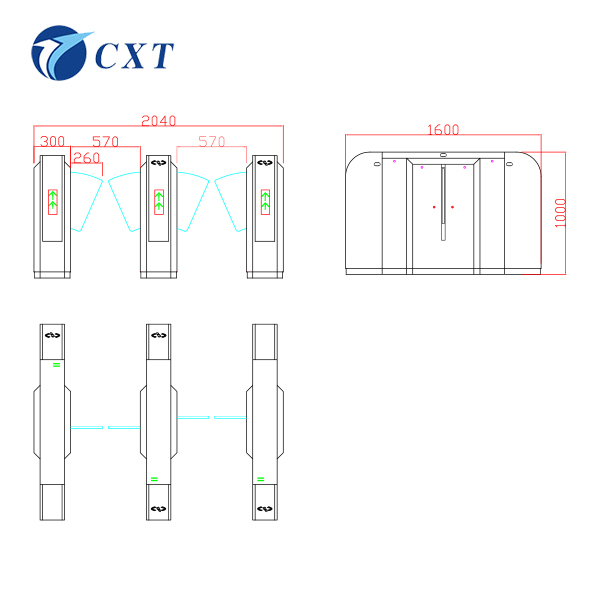

Chassis size: 1600 length * 300 width * 1000 height (MM) /
according to various styles
Processing technology: bending, cutting, welding, polishing,
grinding and other processes
Telescopic arm: extended width of about 260mm, thickness of
12-15MM, transparent organic board (optional soft wing)
Passing width: 570MM
Machine weight: about 50Kg (single movement), about 70KG (double
movement)
Chassis material: standard 304 stainless steel frame structure
Working environment: indoor or outdoor (with rainproof rack)
Access voltage: AC220±10V, 50HZ
Drive motor: DC brushless motor (40W/24V)
Input interface: relay switch signal
Normal service life: ≥10 million times
Humidity: 5%--90%, working temperature: -40℃—— 80℃
Passing speed: 30-40 people/minute
Gate opening and closing time: 0.4-1 seconds adjustable
Case analysis
Warm reminder
To learn more about gates, please log in to the official website of
Chuangxintong or call for consultation
http://www.chcxt.com/
http://www.chcxt.cn/
http://www.turnstilecn.com/
National service hotline: 0755-29787350
Contact number: 13825232947
Contact person: Ms. Xiao
Company address: 2nd Floor, Building A5, Silicon Valley Power Low
Carbon Technology Park, Guanlan, Longhua New District, Shenzhen,
Guangdong Province
Shenzhen Chuangxintong Technology Development Co., Ltd.
Wing gate, wing gate manufacturer, wing gate production, Shenzhen
wing gate
| No | Name | Market wing gate | CXT brushless wing gate |
| 1 | Transmission motor | brushed | brushless |
| 2 | Positioning method | proximity switch or optical coupling positioning | brushless intelligent positioning |
| 3 | Control technology | single chip microcomputer | ARM+DFC |
| 4 | Operation noise | large | very small (silent) |
| 5 | Mechanical wear | large | small |
| 6 | Anti-pinch performance | infrared anti-pinch/double anti-pinch | triple anti-pinch |
| 7 | Operation speed | uniform speed, slow speed, | variable speed, fast speed |
| 8 | Stability | general | very stable |
| 9 | Switching time | 0.6-1S | 0.4-1S |
| 10 | Passing speed | 25-30 people/minute | ≥35 people/minute |
| 11 | Service life | 1-3 years | 5-10 years |
| 12 | Transmission life | 3 million times | ≥8 million times |
| 13 | Parameter setting | dial code | numeric keys |
| 14 | Pass memory | No | yes, can be set |
| 15 | Feedback signal output | no | yes, can be set |
