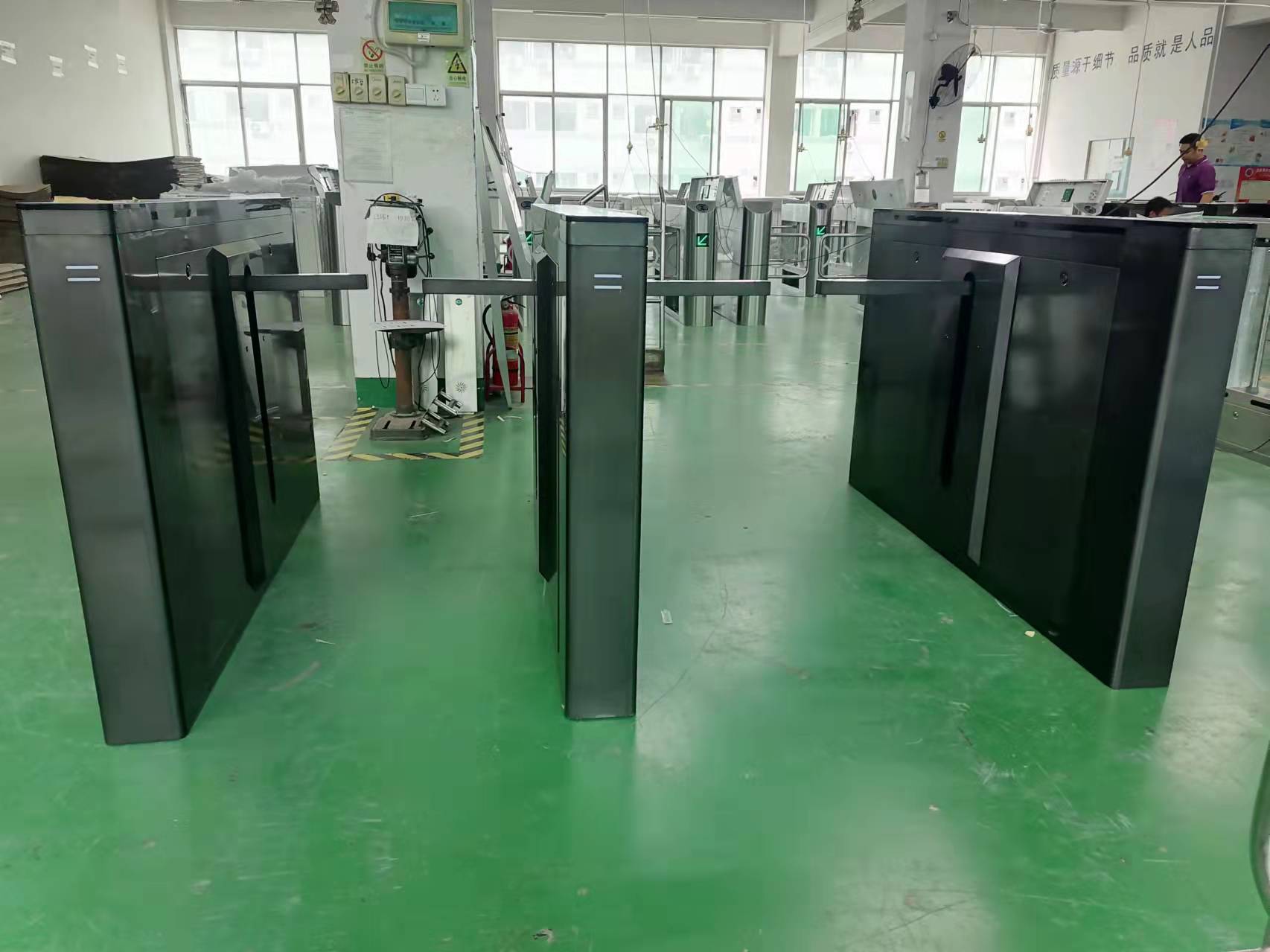

Ticket checking attractions brushless motor fully automatic Drop Arm Turnstile CXT-YZ1200B

Model: CXT-YZ1200B
Specifications: 600*220*1000mm
Pole length: 550mm Process: Produced by bending, cutting, welding, polishing, grinding and other processes
Material: National standard 304 stainless steel (can be customized 201 stainless steel, iron paint)

The one-word gate is a pedestrian access control device, all made of 304 stainless steel, designed according to international standards for moisture-proof, dust-proof and waterproof; the box body is based on standardized design, laser cutting, opening, one-time molding technology, mechanized wire drawing process, modular docking, easy loading and unloading maintenance, and high interchangeability. It is used in places where personnel entrances and exits need to be controlled, such as canteens, hotels, museums, gymnasiums, clubs, subways, stations, docks and other places. The use of the one-word gate allows people to pass through the passage in an orderly manner.

The one-word gate is combined with an IC card reader to form an intelligent one-word gate; the intelligent one-word gate is combined with a computer, access control, attendance and charging management software to form an intelligent one-word gate comprehensive management system, which can realize access control, attendance, flow control and other functions, as well as charging functions.
The one-word gate management system is part of the "one-card pass", which is set up in passages such as communities, factories, buildings, canteens, etc., and can complete various management functions such as employee card access control, attendance, and dining.

Functional Overview:
◆Anti-pinch function: Install multiple pairs of infrared detectors in the area near the gate bar. When a person or object is detected in the anti-pinch area, the gate bar automatically stops moving; the gate bar will not continue to move until the person or object leaves the anti-pinch area.
◆Intelligent alarm function: Including illegal intrusion, reverse intrusion, tailgating, power-on self-test and other alarms, which can be linked with other alarm monitoring equipment, and the alarm mode and parameters can be set through software.
◆Power-off gate opening function: When the power is off, the system will automatically drop the pole to facilitate the evacuation of the crowd and meet the fire protection requirements.
◆Power-on self-test function: The device will automatically detect whether the function is normal when it is powered on or restarted. If an abnormality is found, an alarm will be issued.
◆Traffic indication function: LEDs are installed at the front of the box to indicate the traffic status and direction of passage, and to prompt pedestrians.
◆Passage mode: The entry and exit directions can be independently set to [remote/wireless controlled passage], [free passage], [prohibited passage], [entry only], [exit only], and [entry only] visual mainboard, which can be debugged according to actual needs.
◆Counting function: The built-in mainboard has a counting function to count the number of people entering and leaving.
◆Passage memory function: When more than 2 legal passage signals are given at the same time (including the same direction and reverse direction), the system will memorize all passage requests and complete each passage action in turn.
◆Extended function: It can be connected to ID, IC card, fingerprint recognition, face recognition, finger vein recognition, QR code, barcode recognition, ID card recognition, mobile phone APP gate opening, human comprehensive anti-static equipment, security door, visitor system, person identification system, etc.
Chuangxintong vertical single-shaped gate product parameters:
1) Chassis size: 600 length * 220 width * 1000 height (MM) or 1200 length * 220 width * 1000 height (MM), double movement width is 250mm

2) Standard single-shaped gate stick length: about 500mm

3) Weight: 50-70Kg

4) Chassis material: National standard (No. 304) stainless steel

5) Power supply voltage: AC220±10V, 50HZ

6) Drive motor: DC motor (24V)

7) Input interface: Relay switch signal

8) Normal service life: 6 million times

9) Passing speed: 30-40 people/minute

10) Gate opening and closing time: 1 second

11) Time required to enter the passing state after power-on: 3 seconds

12) Automatic reset time after a fault: 10 seconds

13) Working environment: indoors and outdoors

14) Adaptable temperature: -40℃——80℃

15) Relative humidity: ≤90%, no condensation
